Basic usage

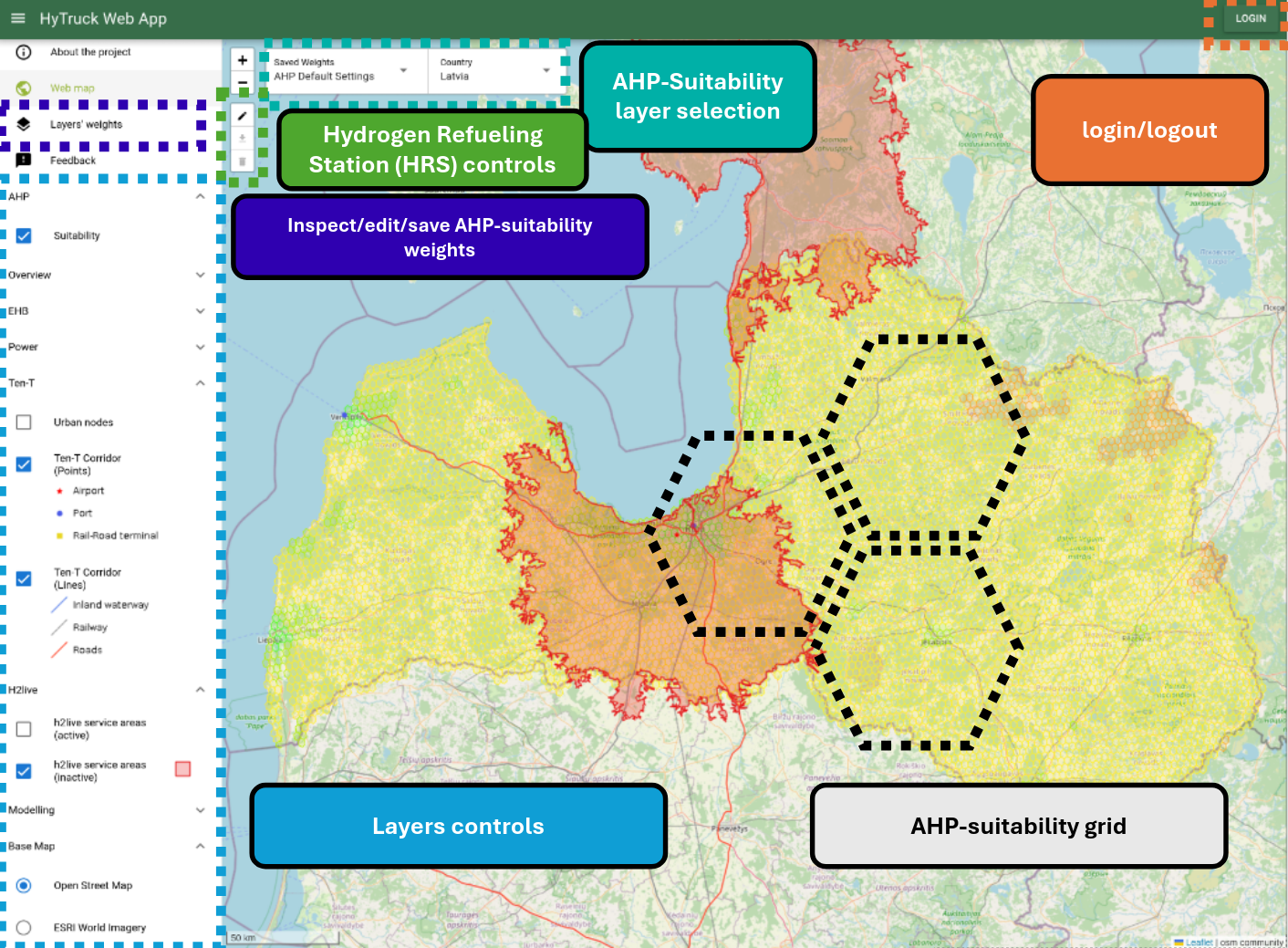

Interface overview
The interface consists of four main sections:
- Main map display with navigation controls
- User login (top right)
- Layer controls (left panel)
- Hydrogen refueling Station (HRS) placement tools (top left of the map)
Core features

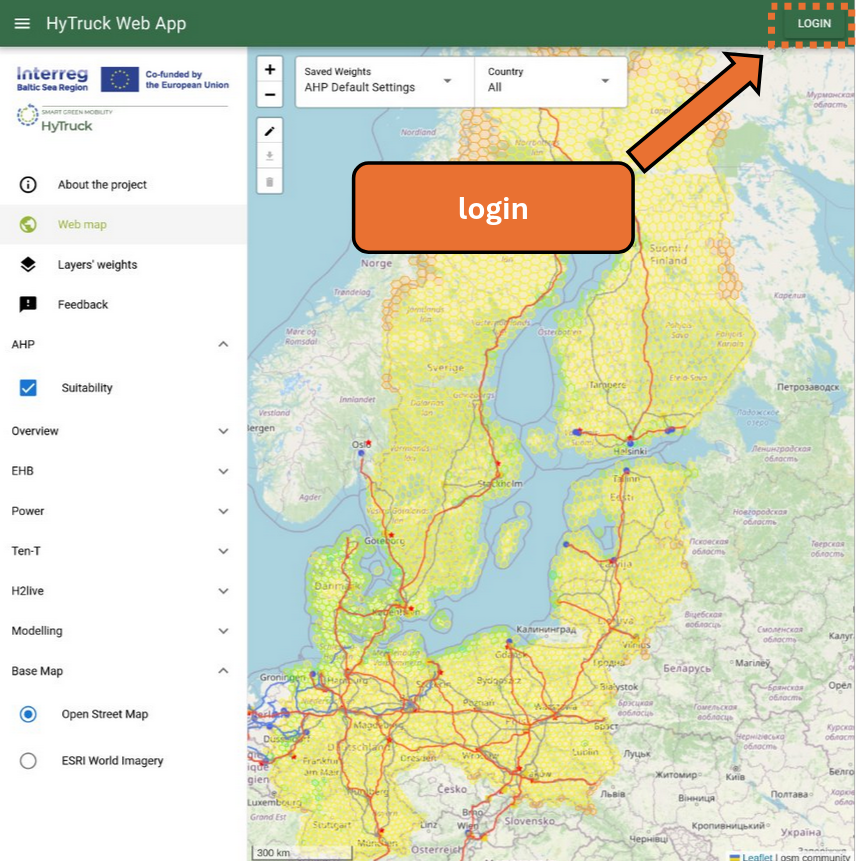

1. User Authentication
- Login required only for saving custom AHP-suitability weights
- Credentials provided by HyTruck project team
2. Area analysis

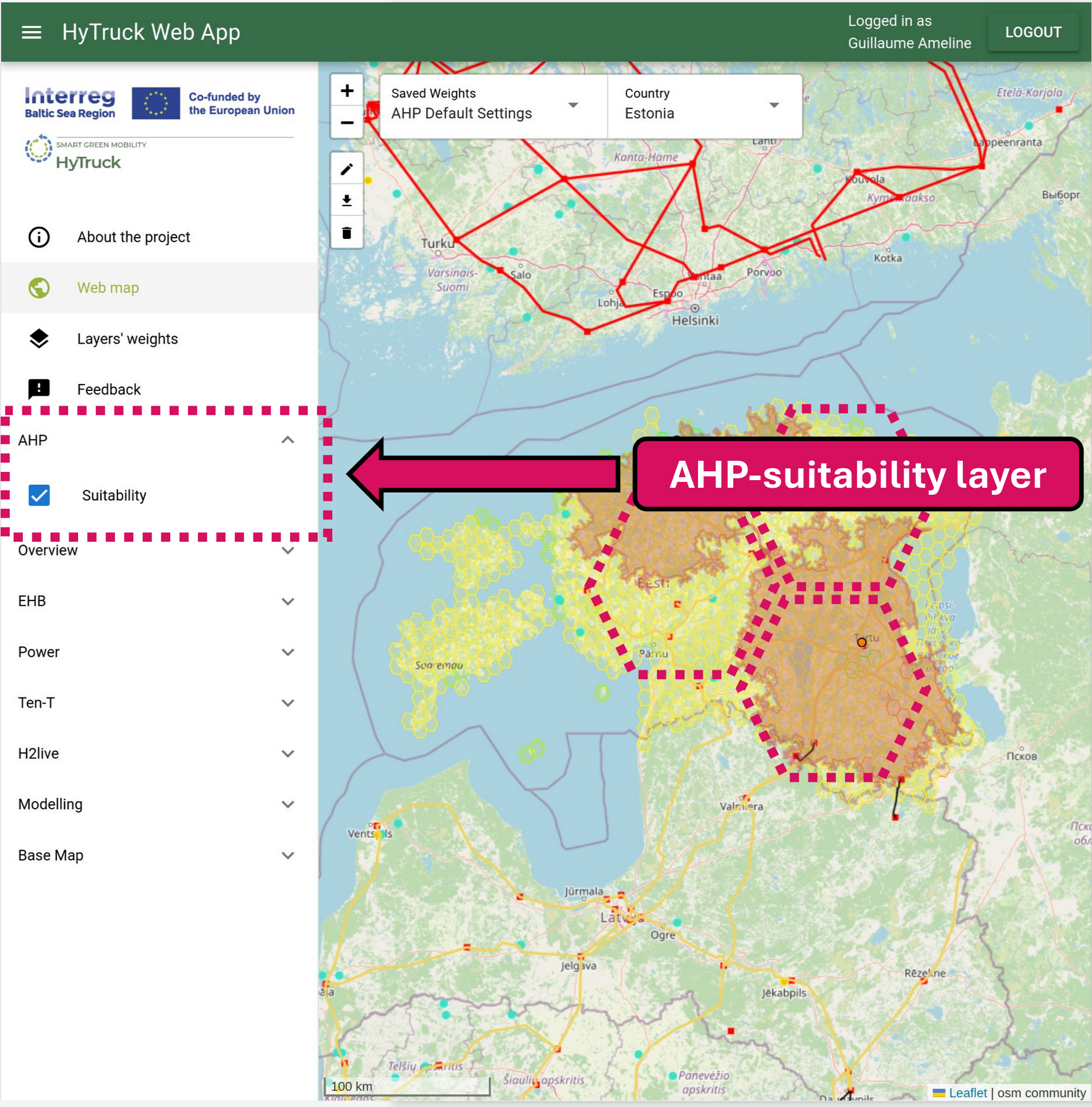

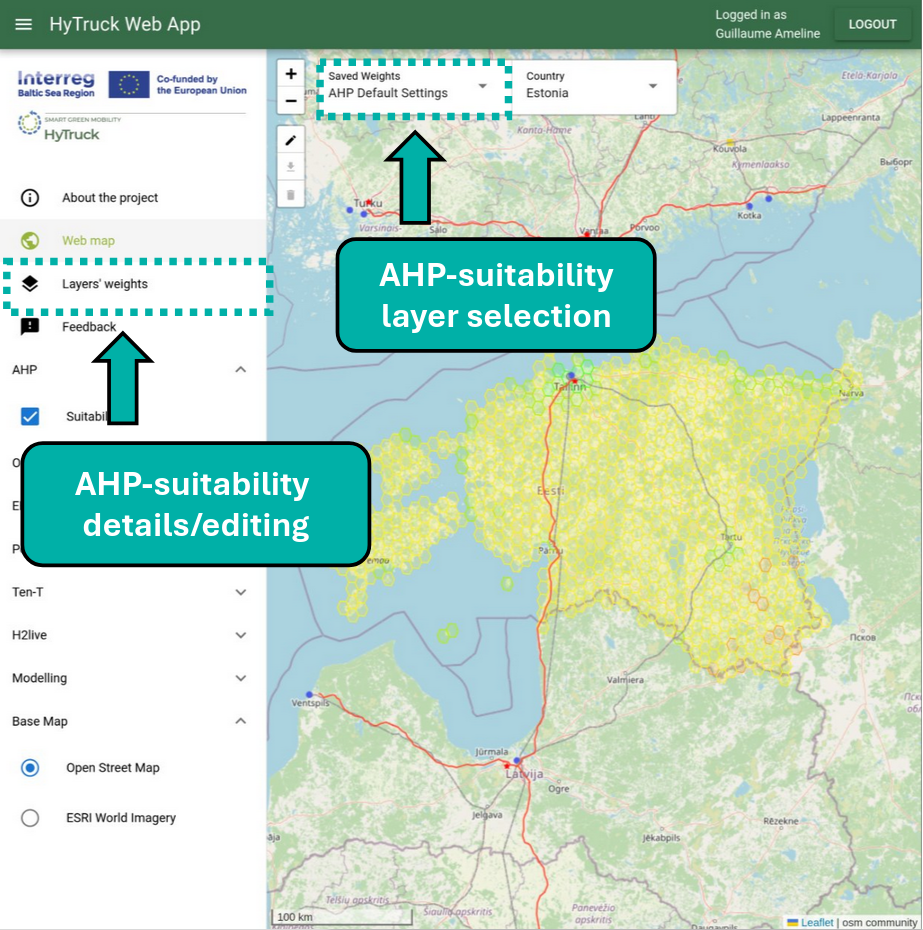

AHP-Suitability Layers
Activate
Toggle the suitability layer under AHP in the left panel

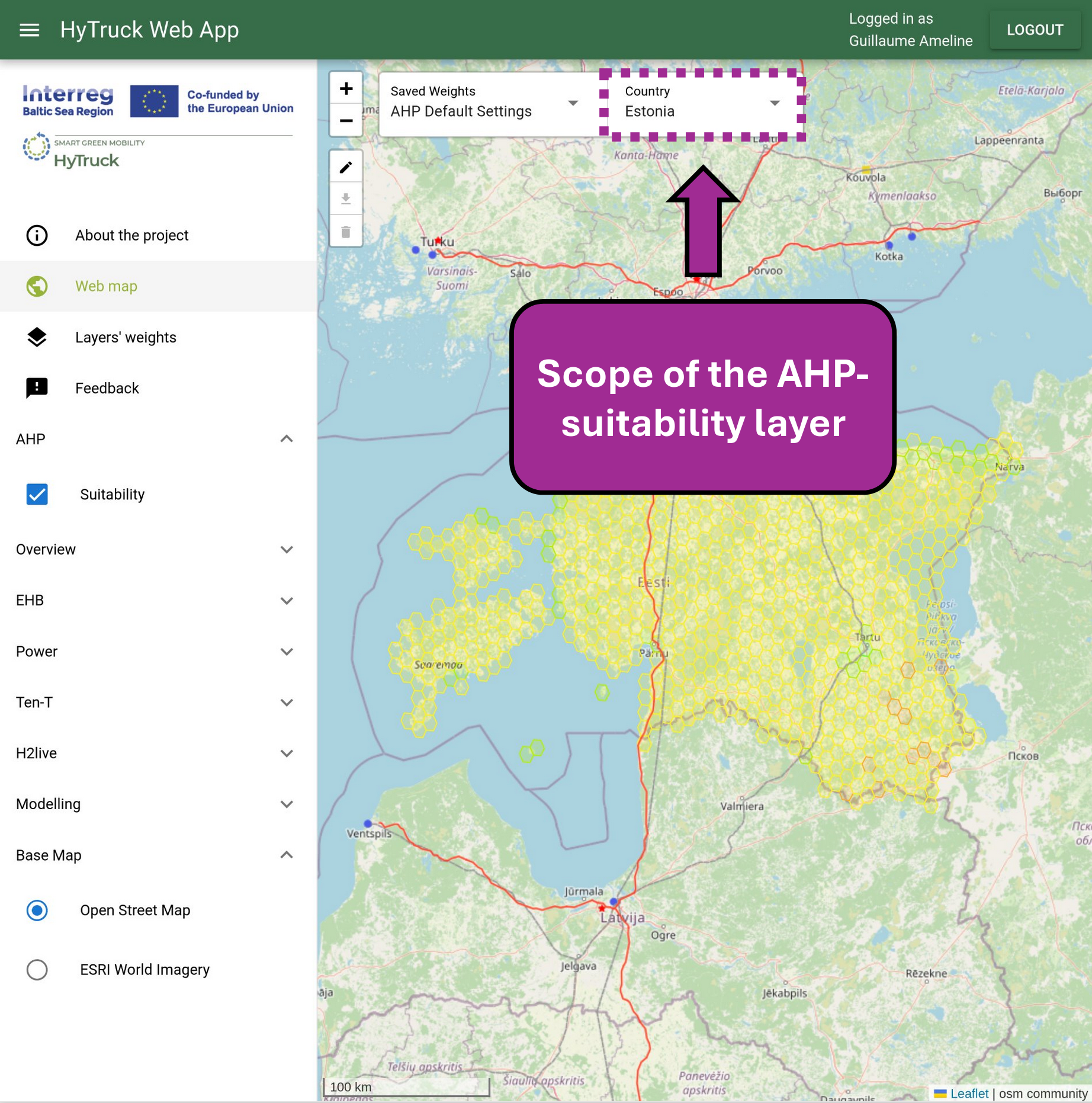

Select region
Choose a country to focus analysis and restrict display of AHP-suitability layer.
Select weights
Available options:
- Default AHP settings (all users)
- Survey-based settings (all users)
- Custom weights (logged-in users only) from AHP-suitability layers' weights editing

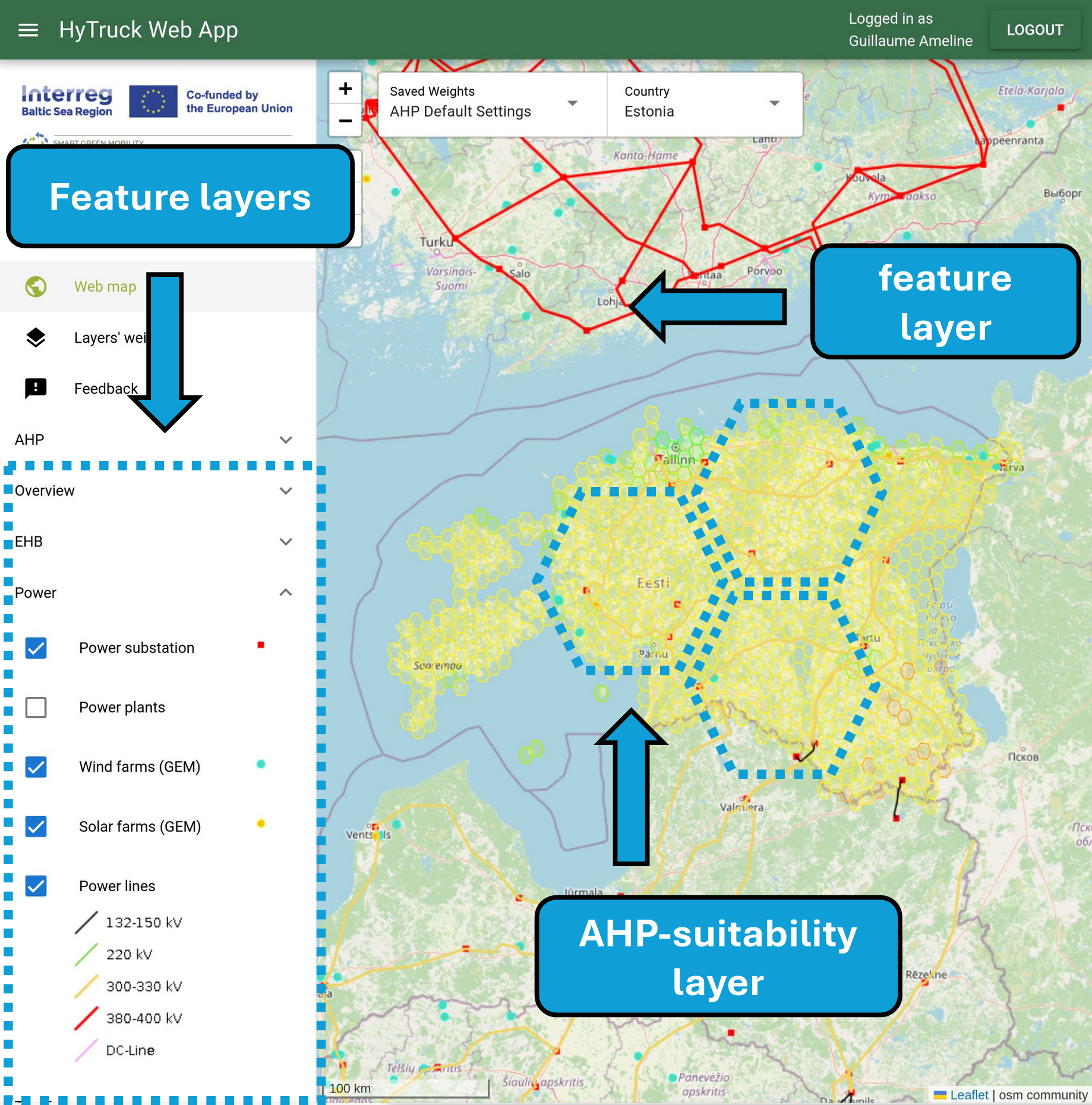

Feature layers
Provide additional information in parralel of the AHP-suitability indicator.
Toggle feature layers for them to be loaded on the map
3. Station planning

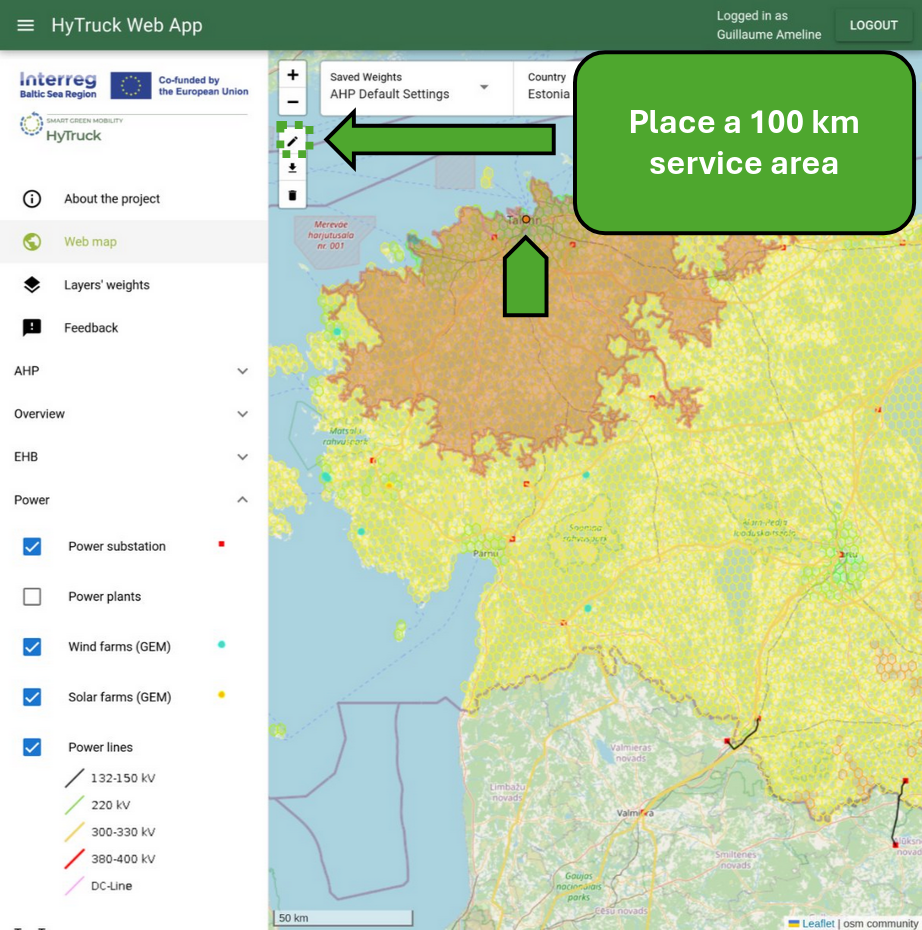

to select a location and view a 100 km coverage range

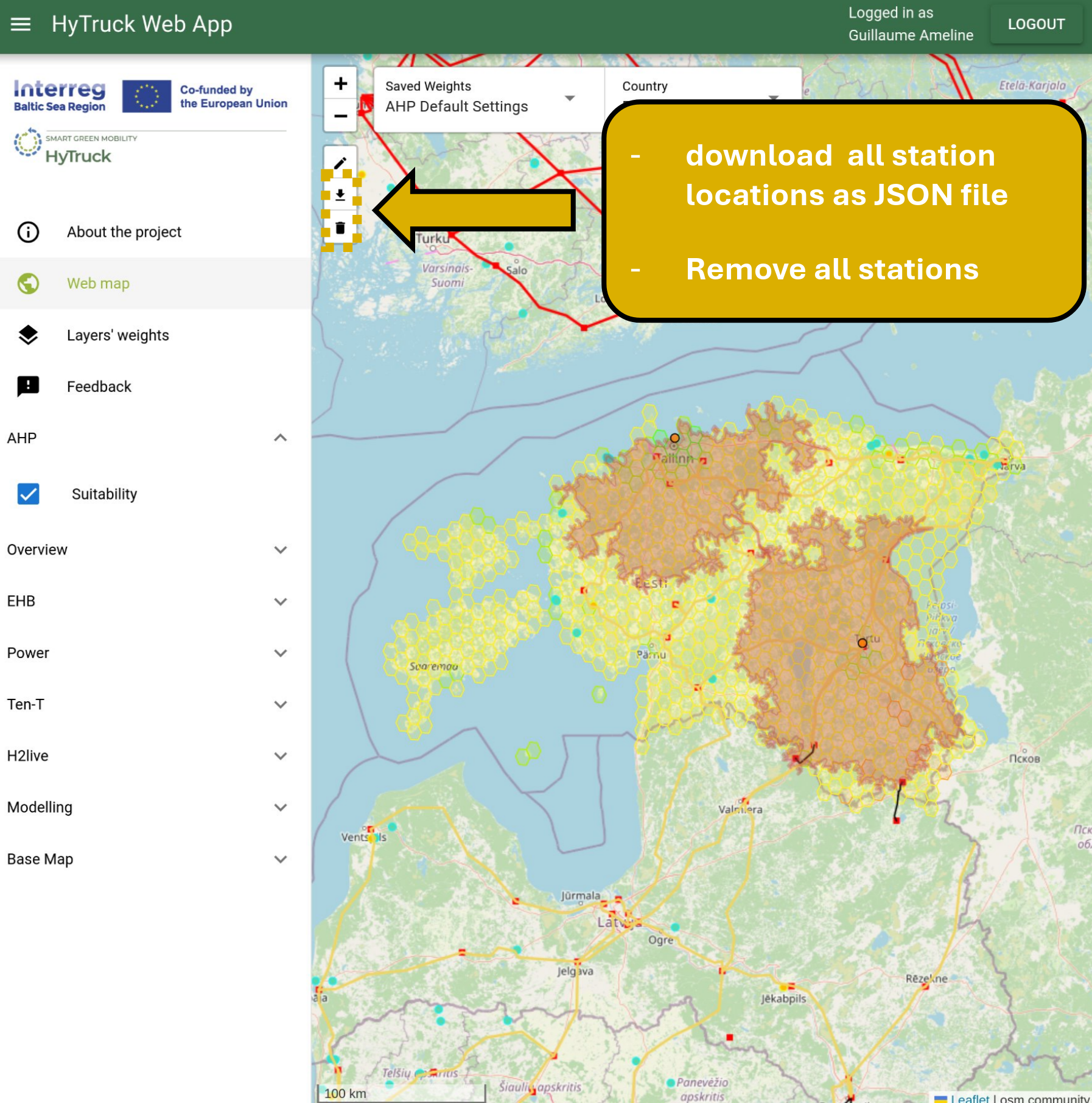

to download all placed stations (HRS) locations as a file (JSON)
to clear all placed stations
4. Layer management
Weights configuration
- Access through Layers' Weights panel
- Create custom configurations (logged-in users)
- Save configurations with unique names (logged-in users)
- It will then be available under the AHP-suitability layers

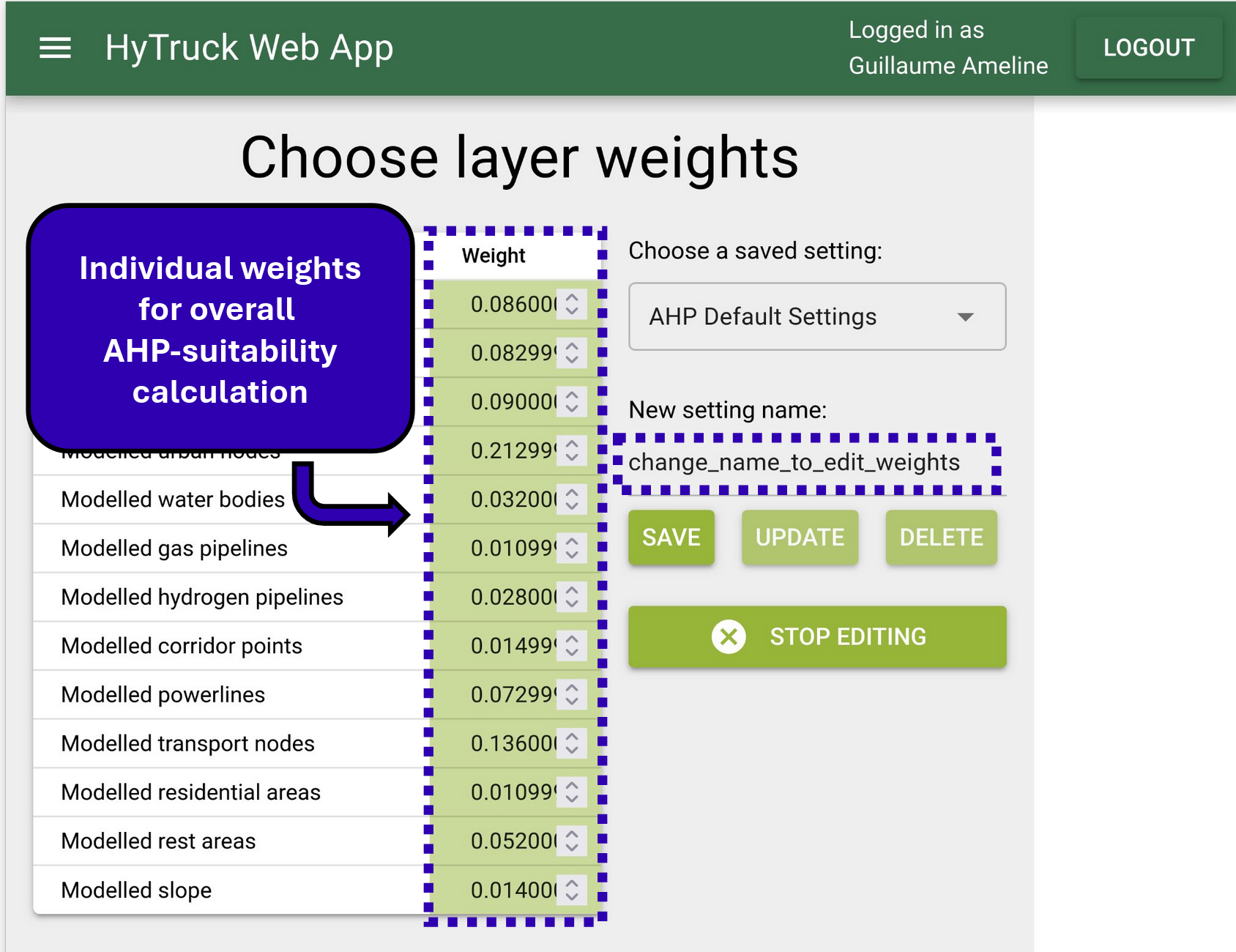

Suitability layers weights
Weights of individual layer used for computation of the AHP-suitability are accessible under Layers' weights.
if you are logged in you can:
- create your own AHP-suitability layer by changing the name of an existing layer
- modify its weights
- save it
Geographic information

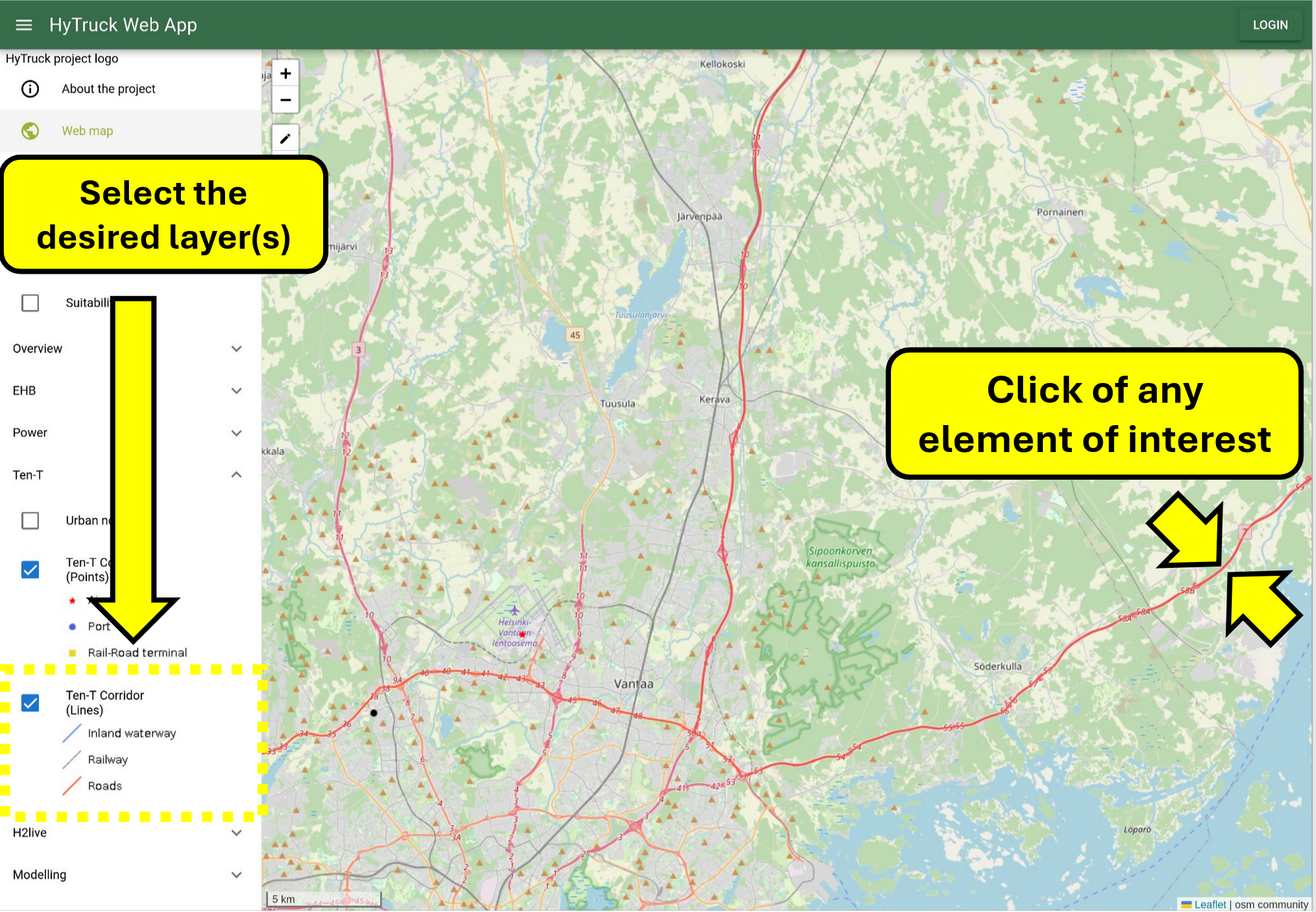

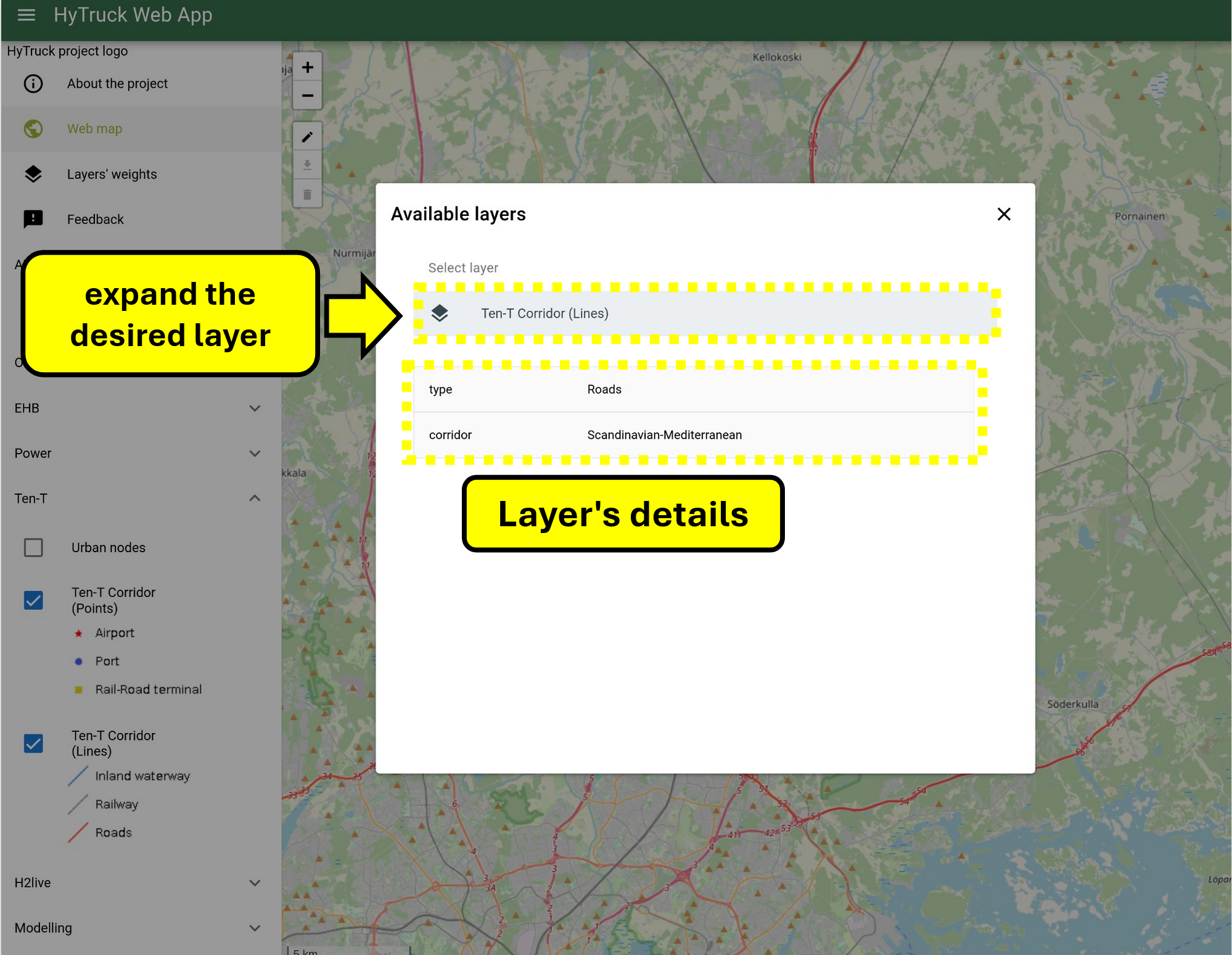

Features
Click on an feature (ex: lines, points) to display details.

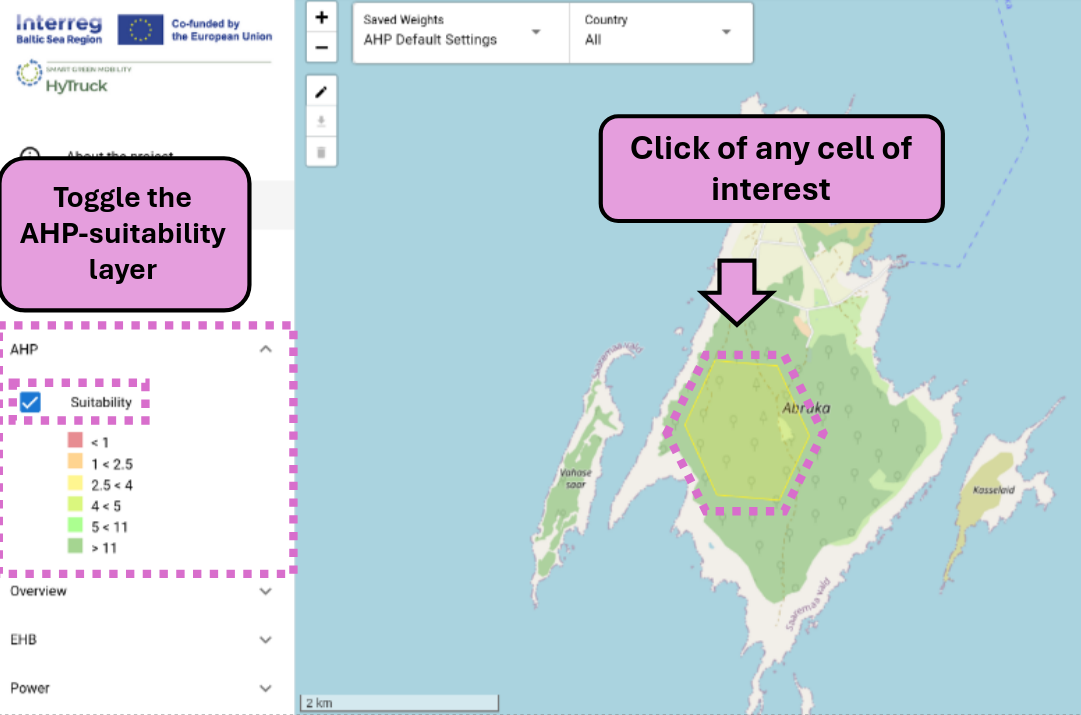

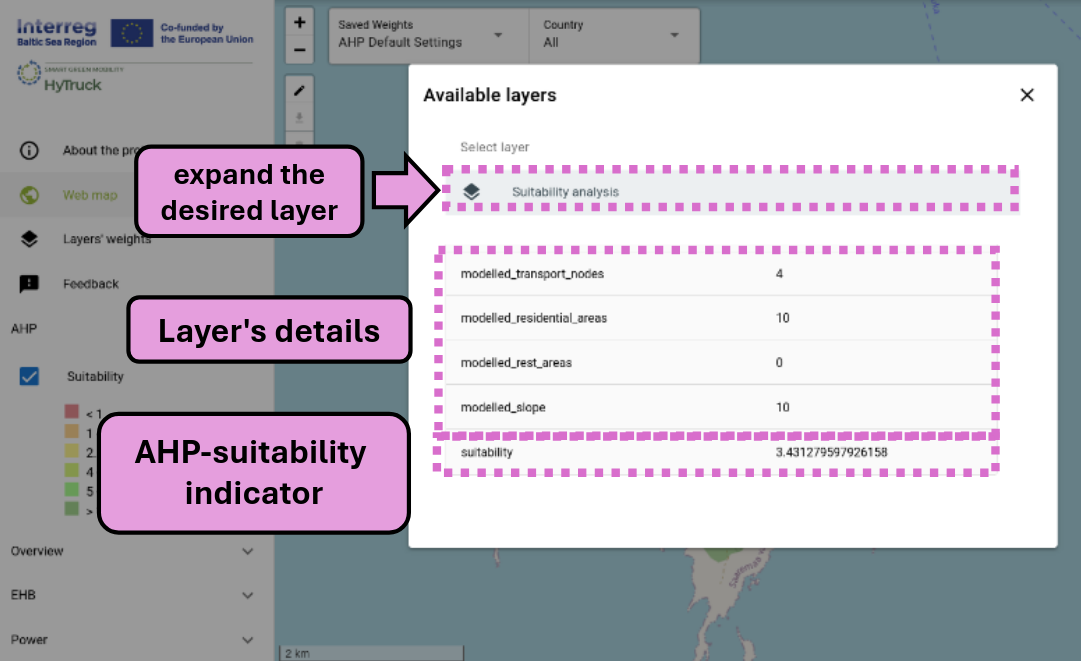

AHP-suitability grid
Click on a cell to display details.
